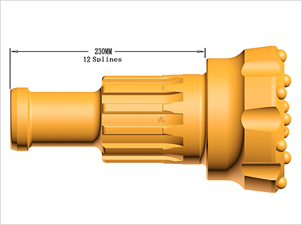

Mission Series DTH hammer bits Mission 80

Mission Series DTH hammer bits Mission 80 :

A noticeable feature of dth Bits is that they have more buttons, which increases the energy released when drilling. The bits also include the global leader hard alloys, resulting in less wear, longer service life and fewer interruptions.With improved heat treatment and increased face hardness, the body is harder, tougher and sturdier. That means premium performance and longer service life。We can also provide the best solution for your mining, with higher efficiency and lower cost.

The following sizes are available for you to choose from, or to provide you with customized services

Head shape	Head Diameter (mm)	No x Buttons diameter mm		Shank length	Air holes	Spline	Weight (Kg)
Head shape	Head Diameter (mm)	Gauge	Front	Shank length	Air holes	Spline	Weight (Kg)

concave face	203	10xΦ18	4xΦ18+10xΦ16	329	2	12	41.2
concave face	216	10xΦ18	4xΦ18+10xΦ16	329	2	12	46
concave face	230	12XΦ18	12xΦ18+6xΦ16	329	2	12	48.7
concave face	235	12XΦ18	12xΦ18+6xΦ16	329	2	12	49.3
concave face	254	12XΦ18	12xΦ18+8xΦ16	329	2	12	56.2
concave face	275	12XΦ18	8xΦ16+19xΦ16	329	2	12	62.8
concave face	305	15XΦ18	12xΦ16+23xΦ16	329	3	12	71.3

Advantages of down-the-hole drill bits

▲The longer life of the drill: Made from premium quality nickel-alloy steel for increased durability and wear characteristics, and YK 05 tungsten carbide which is same grade as internationally well-known brand.

▲High Drilling Efficiency: the drill buttons is wear-resistant,so that the drill can always keep sharp,thus greatly improving the speed of the drilling;

▲The drilling speed is stable:the bit is scraped and cut to break the rock;

▲Good performance:the HFD bits has strong wear resistace,good diameter protection and can make thecutting teeth be used effciently;

▲Quality is assured: Entire CNC processing procedure ensure the quality consistency and reliable.

DrillMore Rock Tools

DrillMore is dedicated to the success of our customers by suppling drilling bits to each application.We offers our customers in the drilling industry many

options, if you do not find the bit you are looking for please contact our sales team at following to find the correct bit for your application.
