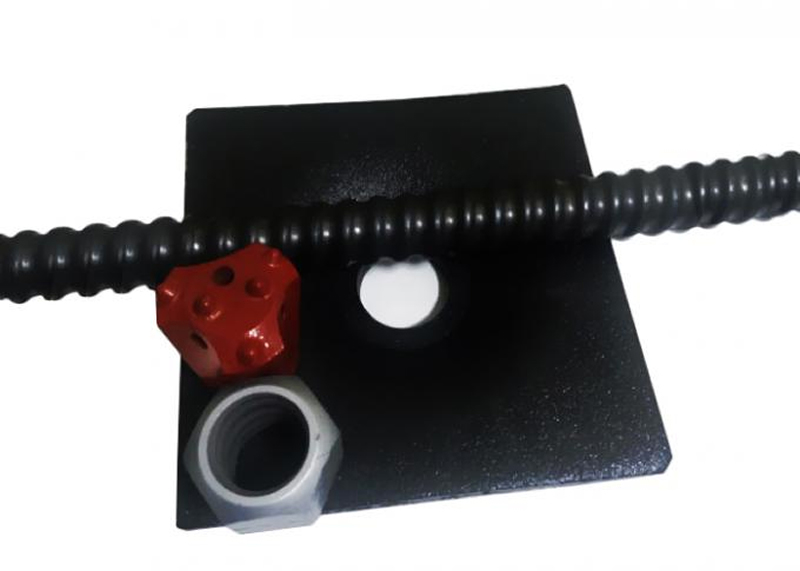

R25N Ground Engineering Tool Hollow Steel Self Drilling Anchor Hex Nuts：

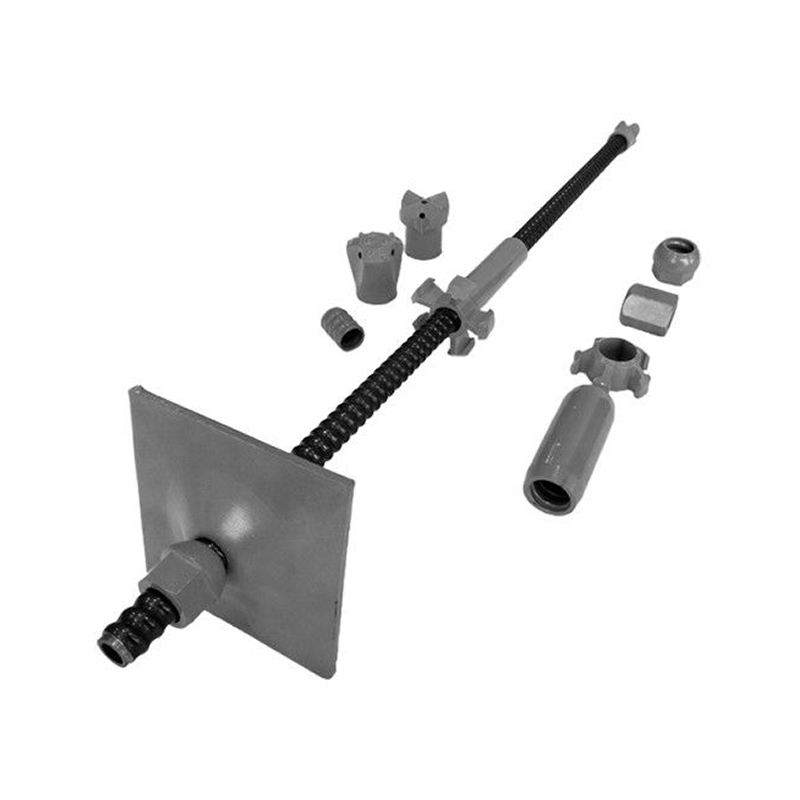

The Self Drilling Anchor (SDA) system is a bolting solution for difficult ground and rock conditions. The system enables drilling and grouting in one operation, making much saving in jobsite and project time. Which is comprised of a hollow threaded anchor bar with a sacrificial drill bit that performs drilling, anchoring and grouting in a single operation. Self drilling anchor system is mainly used in slope stabilization, tunneling pre-support, foundations with micro piles etc jobs, which is widely used in mining, tunneling, railway, metro construction etc projects.

Characteristic:

1. Applying for both the domed plate and flat plate.

2. All nuts exceed the ultimate strength of the self-drilling anchor bar.

3. It can meet the stringent demands on anchor specification.

4. Hot-dip galvanizing for corrosion protection.

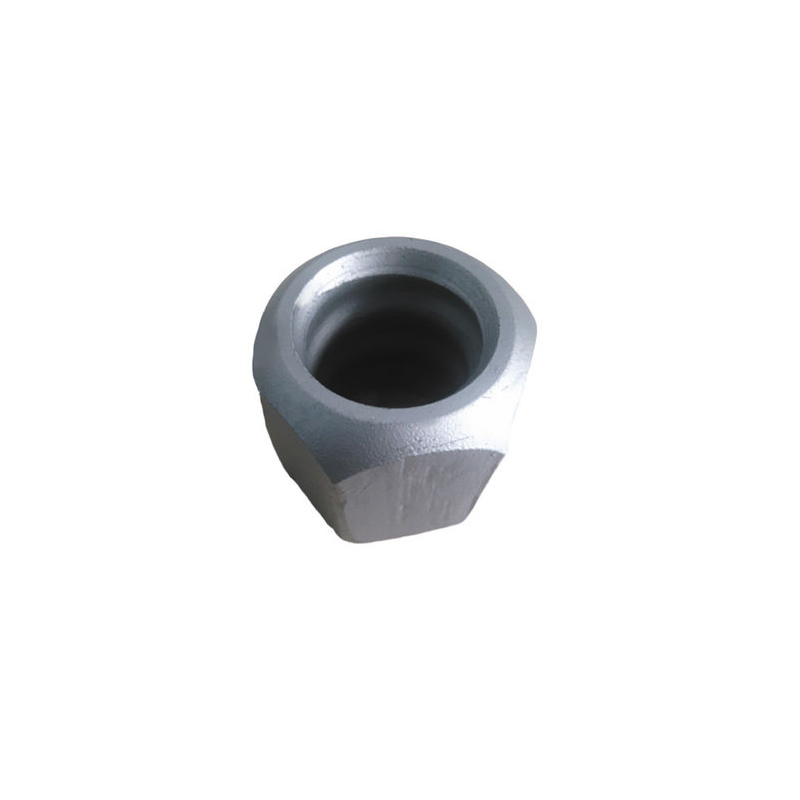

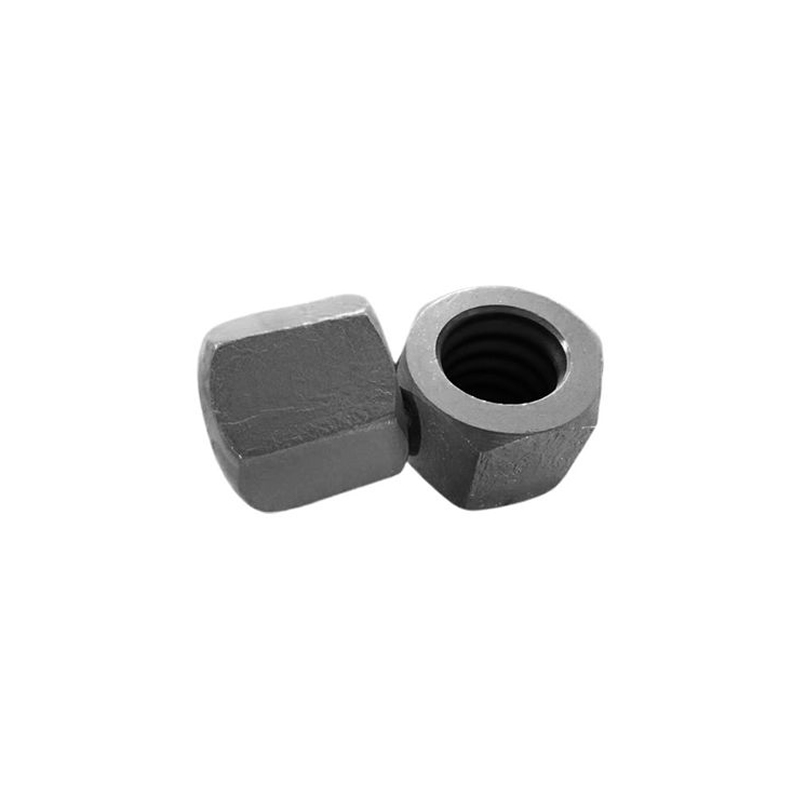

Anchor Nut

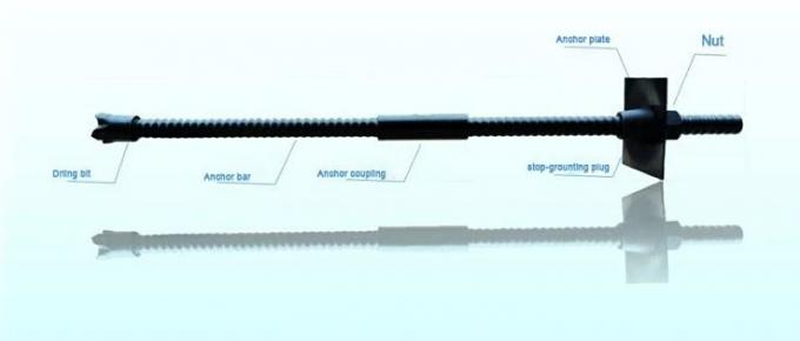

1. Connect the alloy drill and anchor rod one end, on the other end, connect the drill sleeve and shank adapter ,then connect the drilling rig or hand-held drill. Then start drilling, fill the cooling water while drilling.( If you want to lengthen the anchor rod, can connect the coupling, and then drilling)

2. Take down the drill, put the stop-grouting plug into the rod, and insert it to the hole, then ready to grout. Special circumstances like surrounding rock grouting tension is over or surrounding rock is too broken, can use anchor agent to seal the hole.

3. Connect quick grouting coupling and anchor rod end, connect other end of grouting machine.

4. Start grouting, when grouting full and reach design value then power off . Grouting pressure according to the design parameters and grouting machine performance determine ,Cement/sand reference values is 1:0 ~ 1:1, water/cement reference value is 0.45:1 ~ 0.5:1.

5. Install anchor plate and nuts, and tighten nuts.

DrillMore Rock Tools

DrillMore is dedicated to the success of our customers by suppling drilling bits to each application.We offers our customers in the drilling industry many

options, if you do not find the bit you are looking for please contact our sales team at following to find the correct bit for your application.
